Conversor Analogico/digital Miranda Bridge +

Descripción

Miranda DV-BRIDGE + Specs

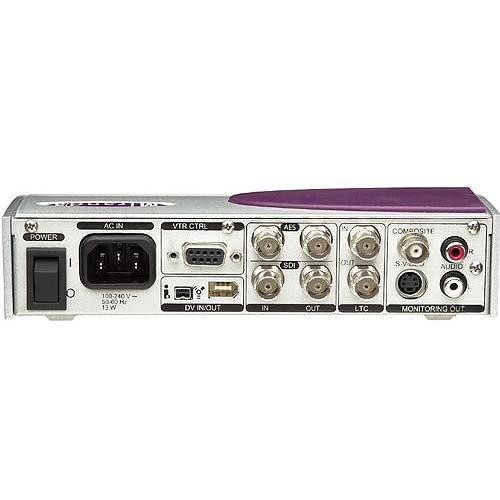

Input
ilink DV x2, IEEE1394, on one 4-Pin and one 6-Pin connector
SDI Digital Video, SMPTE 259M-C, on a BNC connector
AES/EBU Digital Audio, SMPTE 276M, on a BNC connector
Linear Time Code, on a BNC connector

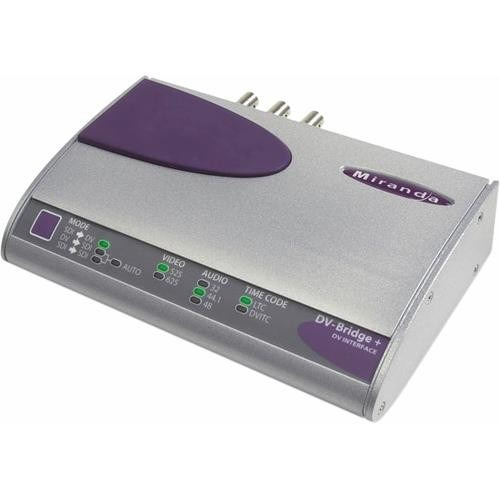

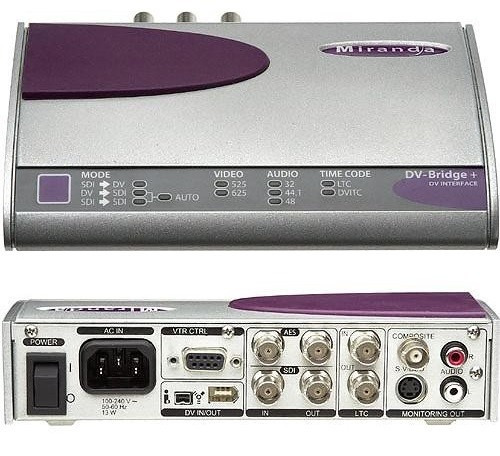

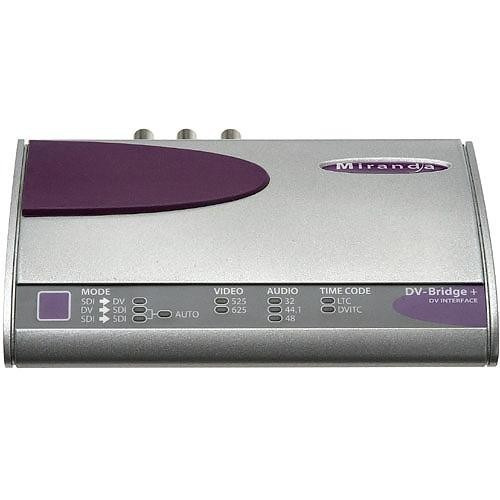

Miranda DV-BRIDGE + Overview
The DV BRIDGE+ is a bi-directional digital video and audio converter. It will convert from IEEE1394 to SDI video and AES/EBU audio; it also offers an analog monitoring output for signal viewing and dubbing to analog equipment.

Bi-directional
Converts from DV (IEEE1394) to SDI with AES/EBU audio and back from SDI AES/EBU to DV.
Automatic Line Detection
Automatically compensates when 525 line or 625 line signals are processed.
Audio Support
This device supports audio sampling rates of 32, 44.1 and 48 kHz.
Remote Functions
RS-422 protocol is supported for remote machine control and interface of basic IEEE1394 commands.
Compact Size
This size is very suitable for desktops and small studio spaces.
Time Code Support
Linear Time Code and DVITC are supported for variable machine compatibility.
