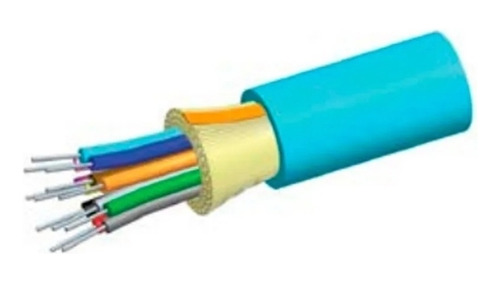

Fibra Optica Om4 Int/ext Lszh 8 Hilos, Aqua. Commscope 50mt

Descripción

Factura A o B.

Venta mínima 50 metros.
Carretel completo 2100 metros, cantidad disponible 5 unidades

Características del producto:

Product Classification
Portfolio CommScope®
Product Type Fiber indoor/outdoor cable
General Specifications
Cable Type Tight buffer
Fibers per Subunit, quantity 8
Jacket Color Aqua
Total Fiber Count 8
Dimensions
Cable Length 2000 m   |   6,561.68 ft
Diameter Over Jacket 6 mm   |   0.236 in
Mechanical Specifications
Minimum Bend Radius, loaded 90 mm   |   3.543 in
Minimum Bend Radius, unloaded 60 mm   |   2.362 in
Tensile Load, long term, maximum 600 N   |   134.885 lbf
Tensile Load, short term, maximum 1000 N   |   224.809 lbf
Optical Specifications
Fiber Type OM4
Optical Specifications, Wavelength Specific
Attenuation, maximum 1.50 dB/km @ 1,300 nm
Standards Compliance IEC 60794-1    |   TIA-492AAAD (OM4)


Product TypeFiber indoor/outdoor cableProduct SeriesC-DS

General Specifications

Cable TypeTight bufferJacket ColorAquaJacket MarkingMetersFibers per Subunit, quantity8Total Fiber Count8

Dimensions

Cable Length2000 m | 6561.68 ftDiameter Over Jacket6 mm | 0.236 in

Mechanical Specifications

Minimum Bend Radius, loaded90 mm | 3.543 inMinimum Bend Radius, unloaded60 mm | 2.362 inTensile Load, long term, maximum600 N | 134.885 lbfTensile Load, short term, maximum1000 N | 224.809 lbf

Optical Specifications

Fiber TypeOM4

Optical Specifications, Wavelength Specific

Attenuation, maximum1.50 dB/km @ 1,300 nmStandards ComplianceIEC 60794-1 | TIA-492AAAD (OM4)

Environmental Specifications

Installation temperature-5 °C to +50 °C (+23 °F to +122 °F)Operating Temperature-20 °C to +70 °C (-4 °F to +158 °F)Storage Temperature-20 °C to +70 °C (-4 °F to +158 °F)EN50575 CPR Cable EuroClass Fire PerformanceDcaEN50575 CPR Cable EuroClass Smoke Ratings2EN50575 CPR Cable EuroClass Droplets Ratingd1EN50575 CPR Cable EuroClass Acidity Ratinga1Environmental SpaceUniversal Low Smoke Zero Halogen (ULSZH)

Garantía del vendedor: 3 meses
