Nuevo

Finisar Ftlx8571d3bcl Finisar 10gb/s 850nm Multimodo Sr

Name: Finisar Ftlx8571d3bcl Finisar 10gb/s 850nm Multimodo Sr
Brand: Finisar
SKU: MLAU2906586612
Price: 37500 ARS
Availability: InStock

Cuota promocionada en 6 cuotas de

Precio sin impuestos nacionales:

Lo que tenés que saber de este producto

Cantidad de splitters: 1
Posee 1 fibras de entrada y 1 de salida.
Tiene un largo total de .

Ver características

Ir a la compra

Características del producto

Marca	Finisar
Modelo	FTLX8571D3BCL
Cantidad de splitters	1

Cantidad de fibras de entrada	1
Cantidad de fibras de salida	1
Relación de división	1
Con conectores	No
Tipos de conectores	SC

Descripción

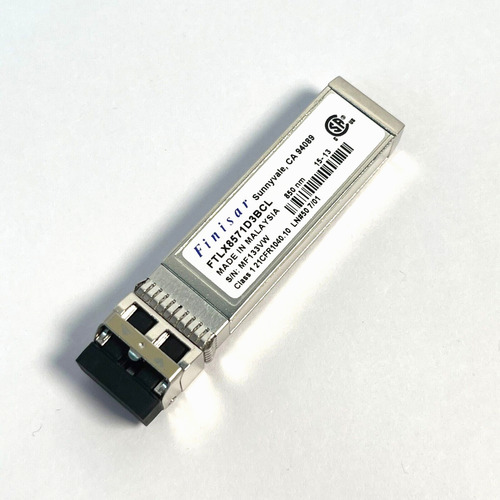

Original Finisar FTLX8571D3BCL

Finisar 10Gb/s 850nm Multimode SFP+ 10GBASE-SR/SW Transceiver

PRODUCT FEATURES

• Hot-pluggable SFP+ footprint

• Supports 9.95 to 10.5 Gb/s bit rates*

• Power dissipation < 1W

• RoHS-6 compliant (lead-free)

• Commercial temperature range 0°C to 70°C

• Single 3.3Vpower supply

• Maximum link length of 300m on 2000 MHZ-km MMF

• Uncooled 850nm VCSEL laser

• Receiver limiting electrical interface

• Duplex LC connector

• Built-in digital diagnostic functions

APPLICATIONS

• 10GBASE-SR/SW 10G Ethernet

• 1200-Mx-SN-I 10G Fibre Channel

Finisar’s FTLX8571D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber.

They are compliant with SFF-84311,SFF-84322,IEEE 802.3ae 10GBASE-SR/SW3 and 10G Fibre Channel 1200-Mx-SN-I4 .

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF84725 .

The FTLX8571D3BCL is a “limiting module”, i.e., it employs a limiting receiver.

Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating

the host-board EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6 ,

and Finisar Application Note AN-20387 .

Sin garantía
