Hp - Docking Station - Product En488aa - Incluye Fuente

Descripción

DOCKING STATION HP

ESPECIFICACIONES

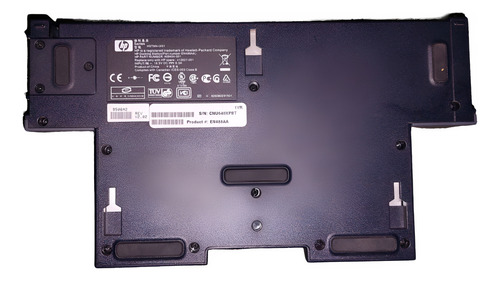

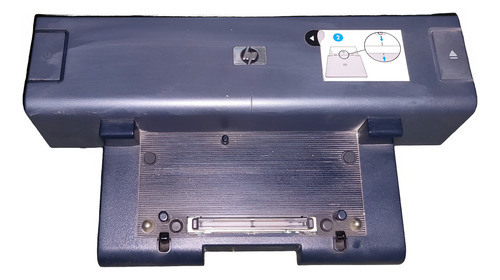

HP Docking Station EN488AA
Part Number: 409454-001
Sapre #: 444706-1
Series HSTNN-IX01
HP EN488AA 409454-001, 444706-1, 449720-001, 413627-001,HSTNN-IX01 , INPUT: 18.5V DC ~ 6.5A Docking Station, HP Docking Station with Dual - Link DVI. Compatible HP Part No:EN488AA, 409454-001, 413627-001 ,444706-1, 449720-001, HSTNN-IX01
Dimension: 11"L x 2.5"H x 2.5"W
Weight: 2.2 lbs
Color: Black
I/O CONNECTORS
SERIAL : ONE 9-PIN CONNECTOR
PARALLEL : ONE 25-PIN CONNECTOR
PS/2 : TWO 6-PIN MINI-DIN CONNECTORS, FOUR USB 2.0-COMPLIANT CONNECTORS
AUDIO : AUDIO LINE-OUT, AUDIO LINE-IN
NETWORK : ONE RJ-45 PORT (10/100) ETHERNET
MODEM : ONE RJ-11 PORT
VIDEO : STANDARD 15-PIN VIDEO OUT, DIGITAL VIDEO INTERFACE (DVI), ONE S-VIDEO: (TV-OUT) ONE 7-PIN MINI-DIN CONNECTOR
AC ADAPTER : 110 TO 240 VAC, 50/60 HZ.
SECURITY CABLE SLOT
USB 2.0 PORTS (4)
AUDIO-IN JACK - AUDIO-OUT JACK
EXTERNAL MONITOR PORT
DIGITAL VIDEO (DVI-D) PORT
TWO PS/2 PORTS
SERIAL PORT
MONITOR STAND PORT
COMPOSITE VIDEO PORT
S-VIDEO JACK
RCA Jack Video TV Out
RJ-11 (MODEM) JACK
10/100 NIC

COMPATIBLE CON PRODUCTOS HP
HP Docking Systems (EN488AA)
Business Notebook & Tablet PCs
HP Compaq 6510b Business Notebook PC - HP Compaq 6515b Business Notebook PC - HP Compaq 6710b Business Notebook PC - HP Compaq 6715b Business Notebook PC - HP Compaq 6720t Mobile Thin Client - HP Compaq 6910p Business Notebook PC - HP Compaq 8510p Business Notebook PC - HP Compaq 8510w Mobile Workstation - HP Compaq 8710p Business Notebook PC - HP Compaq 8710w Mobile Workstation - HP Compaq nc4200 Business Notebook PC - HP Compaq nc4400 Business Notebook PC -HP Compaq nc6120 Business Notebook PC - HP Compaq nc6220 Business Notebook PC - HP Compaq nc6230 Business Notebook PC - HP Compaq nc6320 Business Notebook PC -
HP Compaq nc6400 Business Notebook PC - HP Compaq nc8230 Business Notebook PC - HP Compaq nc8430 Business Notebook PC - HP Compaq nw8440 Mobile Workstation - HP Compaq nw9440 Mobile Workstation - HP Compaq nx6125 Business Notebook PC - HP Compaq nx6325 Business Notebook PC - HP Compaq nx7400 Business Notebook PC - HP Compaq nx8220 Business Notebook PC - HP Compaq nx9420 Business Notebook PC - HP Compaq tc4200 Tablet PC
