Módulo Ug96 Quectel. 2g 3g Umts/hspa

Descripción

ATENCIÓN!!! CON MOTIVO DE LA PANDEMIA QUE NOS AFECTA Y PARA CUIDARNOS ENTRE TODOS, LOS ENVÍOS POR CORREO SE REALIZARAN SÓLO UNA VEZ POR SEMANA Y LOS RETIROS DE MERCADERÍA POR NUESTRA EMPRESA SE PODRÁN HACER DE LUNES A VIERNES DE 9hs A 13hs. MUCHAS GRACIAS!`


Desde hace 20 años que somos distribuidores y representantes de marcas con prestigio internacional con una completa línea de componentes electrónicos .
Nos encontramos en Caballito, cerca del Monumento al Cid Campeador.
Nuestro Horario de atención es de Lunes a Viernes de 10 a 17 hs. Realizamos Factura A y B.
Formas de envío: - Mercado envíos.
- Puede retirar en persona por nuestra empresa.
- Ofrecemos envíos por moto. Consulte la tarifa según el destino.

Consulte por todos nuestros productos.


------------------------NO TENEMOS ATENCIÓN AL PÚBLICO----------------------

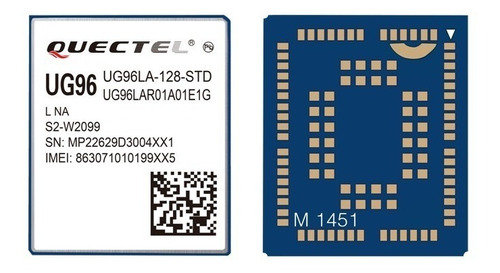

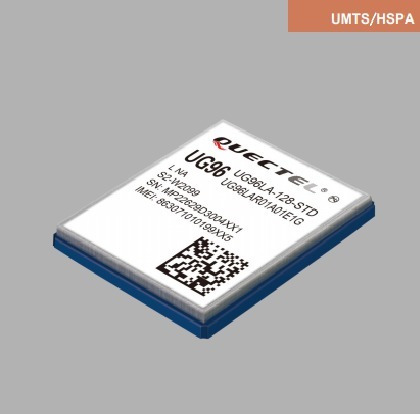

MÓDULO UG96. Marca: QUECTEL UMTS/HSPA Module
PRODUCTO TESTEADO POR FABRICA EN ORIGEN

UG96 is a Penta-band UMTS/HSPA module offering a maximum data rate of 7.2Mbps downlink and 5.76Mbps uplink. With the outstanding feature of fully pin-to-pin compatibility with Quectel UMTS/HSPA UG95 and GSM/GPRS M95 module, it supports GSM/GPRS/EDGE and UMTS/HSPA/HSUPA networks, which enables integrators and developers to design their applications once and truly benefit from the flexibility of worldwide coverage and service afforded by the combination of the two most prevalent cellular technologies worldwide.
With cost-effective SMT form factor of 22.5 × 26.5 × 2.2mm and highly integration level, UG96 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.
A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator/PCM) and abundant functionalities (USB drivers for Windows XP, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as wireless POS, metering, telematics, security, industry PDA/PC and tablet.

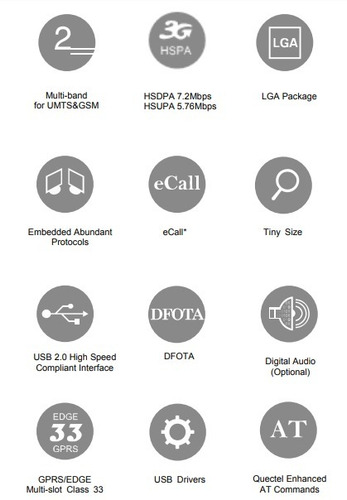

*Key Benefits
Worldwide UMTS/HSPA and GSM/GPRS/EDGE coverage
Minimal SMT form factor ideal for small end products with tight space
Easy drop-in migration to GSM/GPRS module
Super slim profile in LGA package
High-quality data and image transmission even in hazard conditions and dark environment
Fast time-to-market: Reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
Robust mounting and interfaces

*General Features
Frequency Bands 800/850/900/1900/2100MHz@UMTS
850/900/1800/1900MHz@GSM
HSUPA Release 7 (category 6)
HSDPA Release 7 (category 8)
EDGE Multi-slot Class 33
GPRS Multi-slot Class 33
UMTS Release 99/7
GSM Release 99/4
Supply Voltage Range 3.3V ~ 4.3V, 3.8V typ.
Operation Temperature -40 °C ~ +85°C

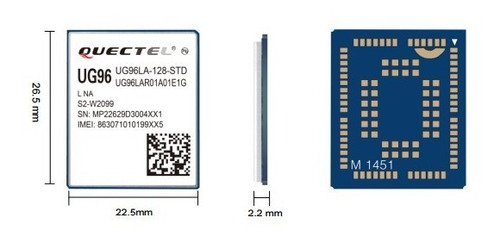

Dimensions 22.5mm × 26.5mm × 2.2mm
Weight 3.1g
Control via AT commands 3GPP TS27.007, 27.005 and other enhanced AT Commands

*Specifications
SMS Point-to-point MO and MT
SMS Cell Broadcast
Text and PDU Mode
HSUPA Max.5.76Mbps
HSDPA Max 7.2Mbps
UMTS Max.384Kbps (DL)/Max.384Kbps (UL)

DATA EDGE Max.296Kbps (DL)/Max 236.8kbps (UL)
GPRS Max.107Kbps (DL)/Max.85.6Kbps (UL)
CSD 14.4Kbps
Speech Codec
Modes HR, FR, EFR, AMR, AMR-WB

Voice Echo Arithmetic Echo Cancellation
Noise Reduction
Protocols TCP/UDP/PPP/MMS/http/https/SMTP/SMTPS/FTP/NTP/NITZ/PING/SSL

Special Features Drivers USB Serial Windows XP, Windows 7, Linux2.6/3.0,
Android 2.3/4.0/4.2
eCall* Accident, Emergency Services
Firmware Update Firmware Update via USB and UART Interface
RAMFile RAM File System Access and Management
DFOTA Delta Firmware Upgrade Over The Air


*Electrical Characteristics
-Output Power
Class 3 (24dBm +1.7/-3.7dB) for UMTS bands
Class E2 (27dBm±3dB) for GSM850 and
EGSM900
Class E2 (26dBm±3dB) for DCS1800 and
PCS1900
Class 4 (33dBm ±2dB) for GSM 850/900
Class 1 (30dBm ±2dB) for GSM 1800/1900
-Consumption
50µA@power off
1.1mA@GSM sleep, DRX=9
1.7mA@UMTS sleep, DRX=9
240mA@GSM voice, max power
490mA@UMTS voice, max power
520mA@GPRS data, max power
500mA@EDGE data, max power
580mA@HSDPA, max power
540mA@HSUPA, max power
- Sensitivity
-110dBm@UMTS 800/850/900/2100
-109.5dBm@UMTS 1900
-109.5dBm@GSM 850
-108.5dBm@EGSM 900
-110dBm@DCS 1800
-108dBm@PCS 1900

*Interfaces
USB 2.0 High Speed
Audio Digital Digital Audio through PCM Interface (optional)
UART ×1, Full Functions
I2C ×1
PCM ×1
USIM 1.8V/3.0V
NETLIGHT Indication for Network Status
STATUS Indication for Power On and Off Status

Certification
Approval CE/FCC/GCF/PTCRB
Plan Anatel/Movistar
