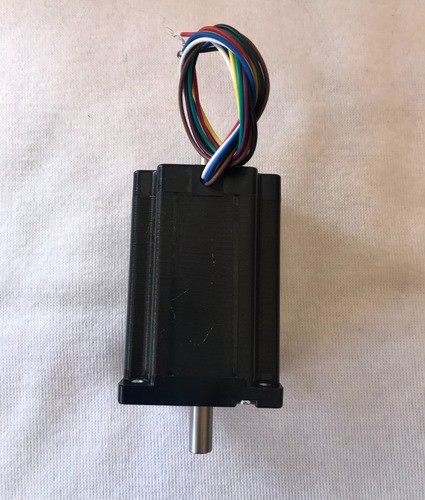

Motor Paso A Paso Nema 23 Alto Torque 1.9 Nm 3 Amp

Descripción

Esta publicación corresponde a un motor paso a paso con las siguientes especificaciones:

Electrical Specification:
Manufacturer Part Number: 23HP30-2804S
Number Of Phase: 2
Step Angle: 1.8 deg
Holding Torque: 1.9 Nm(269oz.in)
Rated Current/phase: 2.8 A
Phase Resistance: 1.13 ohms± 10%
Inductance: 5.4 mH ± 20%(1KHz)

Physical Specification:
Frame Size: 57 x 57 mm
Body Length: 76 mm
Shaft Diameter: 6.35 mm
Shaft Length: 21 mm
D-CUT Shaft Length: 15 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 1.2 kg

Connection
A+ A- B+ B-
BLK GRN RED BLU

Garantía de fábrica: 3 meses
