Osciloscopio Digital Owon 200mhz Xds3202a 14bit

Descripción

PRODUCTO Osciloscopio Digital Owon 200mhz Xds3202a 14bit +dmm+ag+wifi

FUNCIONES TÉCNICAS

Bandwidth 200 MHz
Sample Rate 2GS/s
Vertical Resolution (A/D) 14 bits
Record Length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale 1ns/div - 1000s/div
Rise Time (at input, typical) ==1.7ns
Display 8" color LCD, 800 x 600 pixels
Input Impedance 1MO ± 2 %, in parallel with 15pF ± 5pF; (*50O ± 2%)
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MO = 300Vrms; 50O = 5Vrms
DC Gain Accuracy ±1.5% ±3%
DC Accuracy average = 16 : ±(3% reading + 0.05 div) for ΔV
Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
LF Respond (AC, -3dB) =5Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy ± 1ppm
Interpolation sin(x) / x, x
Interval (ΔT) Accuracy (full bandwidth)
Single : ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16 : ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding (optional) I2C, SPI, RS232, and CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V (1mv/div - 50mv/div), ±20V (100mv/div - 1V/div), ±200V (2V/div - 10V/div)
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement ΔV, and ΔT between cursors, ΔV and ΔT between cursors, and auto-cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B, Delay A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math +, -, *, /, FFT
Waveform Storage 100 waveforms
Q9 Lissajou's Figure
Bandwidth full bandwidth
Phase ±3 degrees
Difference

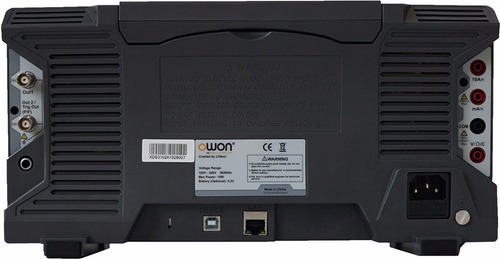

Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100 - 240 V AC, 50 / 60Hz, CAT II
Power Consumption <15W
Fuse 2A, T class, 250V

FUNCIONES MULTÍMETRO

Full scale Reading 3 ¾ digits (max 4000 count)
Diode 0V - 1.5V
Input impedance 10MO
Continuity test <50 (±30) beeping
Full Scale Capacitance <50 (±30) beeping
Voltage VDC : 400mV, 4V, 400V: ±(1 ± 1 digit); max input: DC 1000V
VAC: 4V, 40V, 400V: ±(1 ± 3 digits); frequency: 40Hz - 400Hz; max input: AC 400V (virtual value)
Current DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits)
AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits)
Impedance 400O: ±(1% ± 3 digits), 4 KO - 40MO: ±(1% ± 1 digit)

Arb Waveform Generator (opcional) Especificaciones

Max frequency output 25MHz
Sample rate 125MS/s
Channel available in 1-ch, or 2-ch
Vertical resolution 14 bits
Amplitude range 2mVpp - 6Vpp
Waveform length 8k
Standard Waveforms Sine, Square, Pulse, and Ramp

- WIFI
- TOUCH

INCLUYE:
Cable de alimentación -
Cable USB -
CD Rom con el software -
Manual de usuario en español -
2 Puntas de prueba x1:x10 -
Bolso opcional
