Osciloscopio Digital Usb Pc Owon 25mhz 2 Ch Vds1022

Descripción

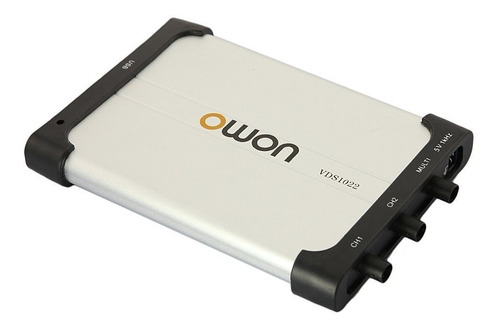

Osciloscopio Digital Owon 25 Mhz Modelo VDS1022

CARACTERISTICAS PRINCIPALES:

- Bandwidth 25MHz
- 2 CH
- Record length 5 k
- Displayed on the same screen
- USB bus powering

ESPECIFICACIONES TECNICAS:

- Bandwidth 25MHz
- Channel 2+1 (multi)
- Sample Rate 100MS/s
- Horizontal Scale (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
- Rise Time =14ns =5.8ns =3.5ns
- Record Length 5K
- Input Coupling DC, AC, and GND
- Input Impedance 1MO ± 2%, in parallel with 10pF ± 5pF
- Channel Isolation 50Hz : 100 : 1 ; 10MHz : 40 : 1
- Max Input Voltage 40V (DC + AC peak)
- DC Gain Accuracy ±3%
- DC Accuracy Average=16 : ±(3% reading + 0.05 div) for ΔT
- Probe Attenuation Factor 1X, 10X, 100X, 1000X
- LF Respond (AC, -3dB) =10Hz (at input, AC coupling, -3dB)
- Sample Rate / Relay Time
- Accuracy
- 150ps
- Interpolation sin(x)/x
- Interval (ΔT) Accuracy
- (full bandwidth)
- Single : ± (1 interval time + 100ppm × reading + 0.6ns),
- Average >16 : ±(1 interval time + 100ppm × reading + 0.4ns)
- Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
- Model VDS1022I VDS1022 VDS2062 VDS3102 VDS2064 VDS3104
- Vertical Sensitivity 5mV/div - 5V/div
- Trigger Type Edge, Pulse, Video, Slope, and Alternate
- Trigger Mode Auto, Normal, and Single
- Trigger Level ±5 divisions from screen center
- Acquisition Mode Sample, Peak Detect, and Average
- Line / Field Frequency (video) NTSC, PAL, and SECAM standard
- Cursor Measurement ΔV, and ΔT between cursors
- Automatic Measurement
- Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot,
- Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
- Delay A→B ,
- Width, -Width,
- Duty, -Duty
- Waveform Math +, -, *, /, invert, FFT
- Lissajous Figure
- Bandwidth full bandwidth
- Phase Difference ±3 degrees
- Communication Interface USB2.0 (isolation) USB2.0 USB2.0, LAN (optional)
- Multi-function
- Interface
- Signal Type synchronized input / output, Pass / Fail , external trigger input
- Level Standard TTL
- Power Supply 5.0V/1A
- Power Consumption =1.5W =5W
- Dimensions (W x H x D) 170 x 120 x 18 (mm) 190 x 120 x 18 (mm)
- Device Weight 0.26 kg 0.30 kg channel 2+1

INCLUYE
- Cable USB de alimentación
- CD Rom con el software
- Manual de usuario en español
- 2 Puntas de prueba x1:x10
- Bolso opcional
