Pack X 2 Ky-005 Diodo Emisor Infrarrojo Transmisor Ir A0082

Nuevo

Pack X 2 Ky-005 Diodo Emisor Infrarrojo Transmisor Ir A0082

Name: Pack X 2 Ky-005 Diodo Emisor Infrarrojo Transmisor Ir A0082
Brand: Pcbready
SKU: MLAU3050158371
Price: 6927.57 ARS
Availability: InStock

7% OFF

en 6 cuotas de

Precio sin impuestos nacionales:

Precio por unidad:

Lo que tenés que saber de este producto

Unidades por pack: 2
Formato de venta: Pack
Tipo de encapsulado: dip común.
Voltaje directo: 5.
Corriente directa promedio: 30mA.

Ver características

Ir a la compra

Características del producto

Marca	Pcbready
Número de pieza	A0082
Modelo	Ky-005
Formato de venta	Pack
Unidades por pack	2

Tipo de encapsulado	DIP común
Voltaje inverso máximo	5
Voltaje inverso máximo no repetitivo	5
Voltaje directo	5
Corriente directa promedio	30mA
Corriente de pico repetitiva	50mA
Corriente de pico no repetitiva	60mA
Temperatura mínima de funcionamiento - Temperatura máxima de funcionamiento	0 °C - 80 °C
Peso	1 g

Descripción

Pack x 2 Modulos Diodo IR

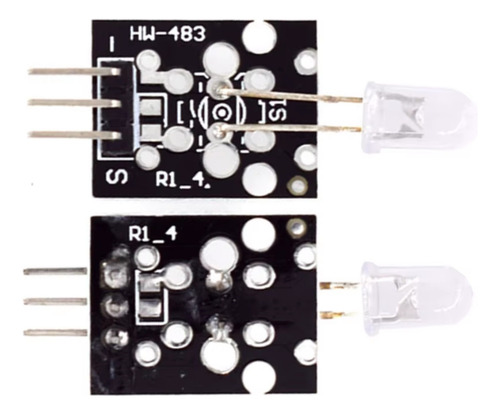

Dos módulos IR KY-005

La placa arduino IR transmisor modulo ( KY-005), emite un haz de luz infrarroja a una frecuencia de 38 KHz.

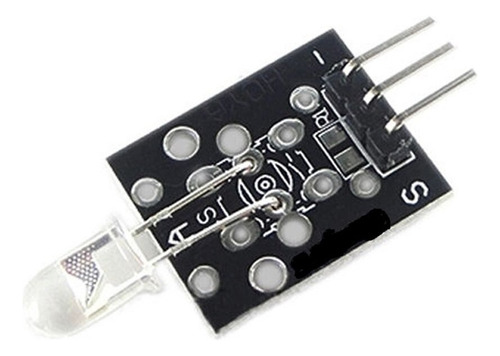

El módulo transmisor de infrarrojos KY-005 consiste en solo un LED IR de 5 mm. Funciona junto con el módulo receptor IR KY-022. Compatible con plataformas de electrónica populares como Arduino, Teensy, Raspberry Pi y ESP8266.

ESPECIFICACIONES TÉCNICAS

Voltaje de funcionamiento: 5 Volts
Corriente alimentación: 30 a 60 mA CD
Consumo de energía: 90 mW
Temperatura de funcionamiento: -25 °C a 80 °C [-13 °F a 176 °F]
Dimensiones: 18.5 mm x 15 mm [0.728 in x 0.5905 in]
Peso: 2 gr

Infrared transmitter module
This is their specific physical map
This time we want to introduce infrared transmitter and receiver modules, in fact, they are now in our daily life. They play an important role in lots of household appliances and are used in devices such as air conditioning, TV, DVD, etc., It is based on wireless sensing, but also can be a remote control, very easy to use.
Products
Infrared emitter converts electrical energy into near-infrared light. It is also known as infrared emitting diode. Its structure is similar with a general light emitting diode, but made of a different semiconductor material.
The infrared receiver is set to receive, amplify, and demodulate the near-infrared light into a digital signal.
The principle of infrared communication Let's look at the structure of the infrared receiver: there are two important elements insaide an infrared receiver, named the IC and PD. IC is the receiver processing element, mainly composed of silicon crystals and circuits, is a highly integrated device, its main function is to filter, shape, decode. Photodiode PD's main function is to receive the optical signal Number.
The following is a brief schematic work The modulated infrared emitting diode emittes a signal, infrared receiver, after receiving decodes, filteres, and a series of operations.

Sin garantía
