Nuevo | +50 vendidos

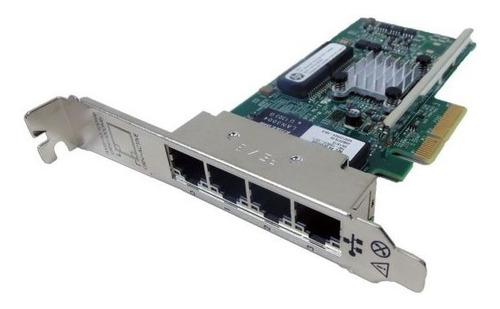

Placa De Red Hp 331t Quad Port Gigabit Ethernet Server

en 6 cuotas de

Precio sin impuestos nacionales:

Lo que tenés que saber de este producto

Tipo de antena: .
Sensibilidad de recepción: .
Sistemas operativos compatibles: Linux.

Ver características

Ir a la compra

Características del producto

Marca	HP
Línea	Servidores
Modelo	331T

Tecnología de conectividad	Ethernet
Interfaz	PCI express
Sistemas operativos compatibles	Linux, Proxmox, Vmware, Windows 10, Windows 11, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows server 2019, Windows server 2022, Windows server 2025
Tasa de transferencia de datos	1 GB/s

Descripción

---------------------------------------------------------------------
PLACA DE RED HP 331T QUAD PORT GIGABIT
---------------------------------------------------------------------

ESPECIFICACIONES GENERALES

General Specifications

Network Processor Broadcom BCM5719 chipset
Data rate Four ports, each at 2 Gbps full duplex; 8 Gbps aggregate full duplex
theoretical bandwidth.
Data path Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots
On-board memory 4 Mbit for PCA
Bus type PCIe 2.0
Bus speed Gen 2 x4
Interrupt levels Automatically configured
Connector RJ-45 (Four)
Cable distance Up to 328 ft (100 m)
Wiring Category 5/ (CAT-5) or better twisted-pair cabling
Dimensions 13.21 cm x 6.86 cm [5.2 in x 2.7 in (L x W)] (without bracket)
Form factor Low profile card with both full height (pre-installed) and half height brackets
included in kit

IEEE Compliance 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
Power and Environmental
Specifications
Operating Temperature 32° to 131° F (0° to 55° C)
Humidity 10% to 90% non-condensing
Non-operating Temperature -85° to 185° F (-65° to 85° C)
Humidity 5% to 95% non-condensing
Power requirement 4.3 W (1000Base-T, maximum traffic)
1.0 W (AUX power with WoL)
Emissions classification Class B
Agency approvals USA FCC Part 15 Class B
Canada ICES=--3, Issue 4
Japan VCCI V3 (2010.04) Class B
Korea KN22 ClassB, KN24
Australia EN55022:2006+A12007 class B
European Union EN55024:1998+A1:2011+A2; EN61000-3-2:2006,
EN61000-3-3:2008
International EN55022:2006 + A1:2007 Class B
RoHS Compliance 6 of 6
Safety UL Mark (USA and Canada)
CE Mark
EN 60590

Operating System
Support
Microsoft Windows Server 2008 (32/64), Enterprise, Web, Embedded, and R2
Microsoft Windows HPC Server 2008
Microsoft certified miniport and teaming drivers
Microsoft Windows 2008 Standard (32 and x64)
Microsoft Windows 2008 Enterprise (32 and x64)
Microsoft Windows Small Business Server 2011 (SBS V7) - base
Microsoft Windows Small Business Server 2011 Essentials

Garantía del vendedor: 12 meses
