Sensor Barometrico Bmp085 Presion Diy Avr Arduino Pic Atmel

Descripción

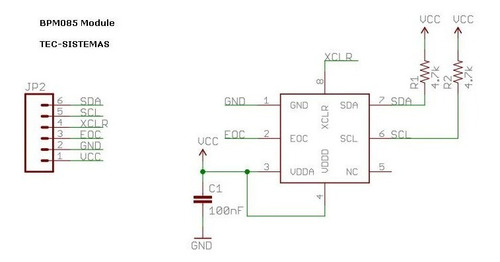

1(un) modulo BMP085 Barometric Digital Pressure Sensor Module Board para Arduino, pic AVR, etc

Descripcion muy tecnica:
BMP085 is a high precision, ultra-low power consumption pressure sensors, can be applied to mobile devices.
Its performance, the absolute accuracy of the minimum can reach 0.03hPa, and very low power consumption, only 3µA.
BMP085 powerful 8-pin ceramic-lead chip carrier (LCC) ultra-thin package, through the I2C bus can be connected directly with a variety of microprocessor.
Pressure range: 300 - 1100hPa (9000 meters above sea level to -500 m).
Power supply voltage: 3V--5V.
LCC8 package: lead-free ceramic carrier package (LCC).
Size: 5.0mmx5.0x1.2mm.
Low power consumption: 5µA in standard mode.
Precision: low-power mode, the resolution of 0.06hPa (0.5 m).
High linear mode with a resolution of 0.03hPa (0.25 m).
With temperature output.
I2C interface.
Temperature compensation.
Lead-free, RoHS compliant.
MSL 1.
Response time: 7.5ms.
Standby current: 0.1µA.
Eliminates the need for an external clock circuit.
Size:2cm X 1.57cm

Typical application:
GPS pinpoint navigation(dead reckoning,fluctuation bridge detection)
Indoor and outdoor navigation
Detection for entertainment,sports and health care and so on
Weather forecast
Vertical speed instruction(rise/sink speed)
Fan power control


Desarma tu equipo y verifica que coincida con las fotos/medidas, sino pasale el link a tu tecnico para que te lo valide!!!
*** NO hay reclamos, ya que el envio sale mas que el producto!!! ****

Necesitas programación? no tenes mas que preguntar!!!

CUANDO PUEDO RETIRAR:
=======================
Podes Pasar de Lunes a Viernes de 16 a 20hs
Las entregas se realizan en Almagro - Caballito, sobre Av. Rivadavia, Cap.Fed.

Te acercan: Subte A est: Rio de Janeiro, y los colectivos: 15, 65, 85, 112, 2,

5, 8, 86, 88, 103, 132, 26, 105
A unas 4 a 5 cuadras te dejan el: 84, 55, 135, 25, 181

Necesitas programación? no tenes mas que preguntar!!!

Sin garantía
