Torno Cnc Mori Seiki Nt1000 Multitarea Año2010
Lo que tenés que saber de este producto
- Potencia del motor principal: 15hp.
- Control del torno: FANUC MSX-711IV MAPPS-III CONTROL.
- Distancia entre puntas: 423mm.
Características del producto
Características principales
Marca | MORI SEIKI |
|---|---|
Modelo | NT1000 |
Otros
Potencia del motor principal | 15 hp |
|---|---|
Control del torno | FANUC MSX-711IV MAPPS-III CONTROL |
Distancia entre puntas | 423 mm |
Peso | 8,48 t |
Descripción

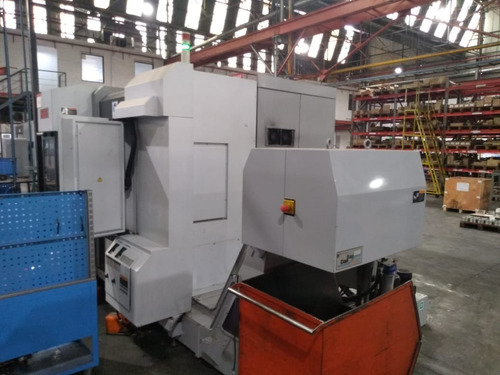

TORNO CNC MORI SEIKI NT1000
CON SUB HUSILLO Y HTAS MOTORIZADAS
SE PUEDE VER FUNCIONANDO
PRECIO 140.000 USD
2010 MORI SEIKI MODEL NT-1000/WZ 7-AXIS MILL/TURN CENTER
SPECIFICATIONS
CAPACITIES
MAXIMUM WORKPIECE SWING: 14.57”
SWING OVER CROSS SLIDE: 14.57”
SWING OVER CROSS SLIDE (TURRET 2): 11.81”
MAX TURNING DIAMETER (TOOL-SPINDLE): 14.57”
MAX TURNING DIAMETER (TOOL-SPINDLE/TURRET 2): 10.63”
MAX TURNING LENGTH: 16.69”
BAR WORK CAPACITY: 2.05”
TRAVELS
X1-AXIS (TOOL-SPINDLE): 14.96”
Y-AXIS (TOOL-SPINDLE): + 4.13”
Z1-AXIS (TOOL-SPINDLE): 18.11” + 6.10” (ATC TRAVEL)
B-AXIS (TOOL-SPINDLE): + 120 DEGREES
X2-AXIS (TURRET 2): 6.10”
Z2-AXIS (TURRET 2): 24.01”
C-AXIS: .001 DEGREES
SPINDLE
SPEED: 6,000 RPM
NUMBER OF SPINDLE SPEED RANGE (STEP): 2
SPINDLE NOSE TYPE: JIS A2-5
THROUGH-SPINDLE HOLE DIAMETER: 2.4”
MINIMUM SPINDLE INDEXING ANGLE: 0.0001 DEGREES
SPINDLE BEARING INSIDE DIAMETER: 3.94”
TOOL-SPINDLE (TURRET ONE)
NUMBER OF TOOLS ON HEAD: 1
MINIMUM B-AXIS INDEXING ANGLE: 0.0001 DEGREES
TOOL SPINDLE SPEED: 20,000 RPM
SPINDLE SPEED (STEP ONE): 1,800 – 5,000 RPM
SPINDLE SPEED (STEP TWO): 5,000 – 18,000 RPM
SPINDLE SPEED (STEP ONE): 18,000 – 20,000 RPM
TAPER HOLE OF TOOL-SPINDLE: HSK-A50/C6
INSIDE DIAMETER OF TOOL-SPINDLE BEARING: 2.56”
TOOL MAGAZINE: 38 POSITIONS
MAXIMUM TOOL DIAMETER: 2.76”
MAXIMUM TOOL DIAMETER (NO ADJACENT TOOLS): 5.12”
MAXIMUM TOOL MASS: 11 LBS
TURRET 2
NUMBER OF TOOLS: 8
SQUARE SHANK HEIGHT OF SINGLE POINT TOOL: .79” / 20 MM
SHANK DIAMETER OF BORING BAR: 1.26” / 32 MM
MOTORS
SPINDLE DRIVE MOTOR (30 MIN/CONT): 15/10 HP
TOOL-SPINDLE MOTOR (40%/CONT): 7.5/5 HP (1,800 – 18,000 RPM)
TOOL-SPINDLE MOTOR (40%/CONT): 5/3 HP (18,000 – 20,000 RPM)
GENERAL
WEIGHT: 18,700 LBS
ELECTRICS
EQUIPPED WITH
FANUC MSX-711IV MAPPS-III CONTROL
.001 DEGREE FULL CONTOURING (B-AXIS)
HYDRAULICS THRU TURRET I/F
LOWER TURRET EXTENDED TRAVEL OF 200 MM
COOLANT FILTRATION SYSTEM
HINGE BELT CHIP CONVEYOR (RIGHT SIDE)
RENISHAW PROBE SYSTEM
150 PSI THROUGH SPINDLE COOLANT
5 SETS OF M-CODES
PROGRAMMING RESOLUTION BY 1/10
MICROCENTRIC CB65 HYDRAULIC CHUCK
TAILSTOCK FOR TURRET
