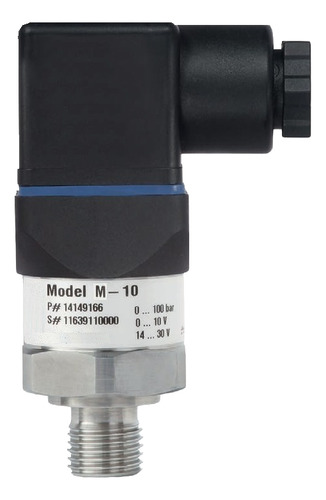

Transductor Transmisor Presión 0-10 Bar Salida 0 - 10 Volt

Descripción

TRANSMISOR INDUSTRIAL DE PRESIÓN 0 a 10 BAR - SERVICIO PESADO - Salida 0 - 10 Volt

Features Spec

> CE conformity
> O-ring sealing inside
> High quality
> Compact, rugged construction
> Stainless steel 316L diaphragm
> -20~105°C wider working temperature
> Vented gauge, sealed gauge, absolute pressure Stainless steel 316L diaphragm

A wide range of pressure and electrical connections Stainless steel sensor used inside

Parameters Field Connection

> Supply voltage 9...30VDC
> Output signal 0...10 Volt
> Measuring range 0...1bar to 400bar
> Proof pressure 2.0 × F.S.(= 250 bar)
> 1.5 × F.S.(> 250 bar)
> Accuracy 1%F.S. @25°C
> 3%F.S. @-20 ¿ 105°C
> Operating temp -20 ¿ 105°C
> Mechanical configurations
> Pressure connection See Ordering information in page 3
> Electrical connection GSP311, DIN43650C, 3-pin Packard, M12*1
> Sealing rating IP65
> O-ring Viton
> Housing Stainless steel 304
> Diaphragm Stainless steel 316L
> PIN connections Wire connections
(GSP311, DIN43650C, 3-pin Packard, M12*1)



Somos Granados Automatización Agrotech,
División Industria - más de 20 años al servicio de la Industria

Garantía de fábrica: 3 meses
